Outdoor gateway for water meters with a pulse generator equipped with Lora

 1,800.00 excl. BTW

Art nr. 0015239

Axioma Qalcosonic ultrasonic water meters

  • Kwaliteit draait om details
  • Snelle levering

  • Scherpe prijzen

  • Offerte op maat mogelijk

Betaal veilig en snel via

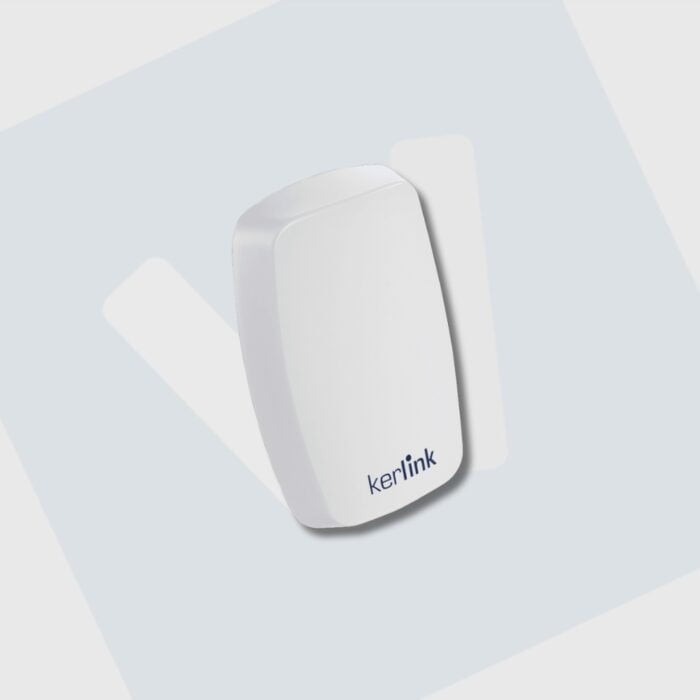

The Kerlink Wirnet Istation 868 9dbi is with ideally suited to receive a large environment data from water meters. Standard fasteners are included. The antenna is also easily attached to the station for good coverage. The outdoor gateway must be provided with a LAN connection and 230 volts.

Wirnet iStation LoRaWAN-gateway

The Wirnet iStation is the ideal LoRaWAN gateway for your outdoor applications

With a strong and robust design, Wirnet iStation is designed to support your smart city, smart industry or any other smart project, combining simplicity of outdoor installation, unique superior coverage and operational excellence.

The Wirnet iStation is a LoRaWAN gateway that specifically meets the standard requirements of public operators, MVNOs, cable operators, private companies or government agencies that want to boost their business with IoT and deploy evolvable and reliable networks and connect and manage large numbers of end devices every day millions of bidirectional messages.

The Wirnet iStation is easy to operate, even for non-telecom users

This long-range and energy-efficient gateway comes with exclusive remote monitoring, advanced radio network configuration and backhauling management features with Kerlink’s Wanesy Management Center: it becomes very easy to operate the LoRaWAN network, even for non-telecom users.

The Wirnet iStation is industry-quality and future-proof

The robust and streamlined design combines the best of the Wirnet Station and the optimisations of the i-series LoRaWAN gateways (Wirnet iFemtoCell, iFemtoCell-evolution and iBTS), using the same software for easier and cheaper integration. The Wirnet iStation offers high availability and performance levels that enable flexible and scalable deployments in many sectors.

It includes:

  • Backhaul-connectiviteit: 4G wereldwijd-module met 3G/2G fallback en Ethernet (RJ45)
  • Fully integrated and internal antennas GPS, 4G, LoRa
  • Carrier-grade (IP67) housing for industrial use
  • 8ch RX (125kHz, multi spread factor) + 1ch RX (250KHz or 500kHz, mono spread factor) + 1ch RX (FSK) to get 10ch RX + 1ch TX,
  • Mounting kit for easy and quick installation without opening the enclosure,
  • Built-in filters with high rejection for co-localisation with other radio devices and enable strong interference resistance
  • PoE injector powered

The Wirnet iStation is highly secure

Thanks to the innovative software and hardware architecture and the integration of Prove&Run SecureBoot and SecureStorage, Wirnet iStation is highly secure.

When integrated with Kerlink Wanesy Management Center, configuration, management, updates and monitoring are quick

water meter

QW1-250 Q3=10 L260 DN25, QW1-250 Q3=16 L200 DN50, QW1-250 Q3=2.5 L110 DN15, QW1-250 Q3=4 L190 DN20

  • Elster pulser reed 2 P/ 10L for DN25, DN32 and DN40

     42.75 excl. BTW

  • Elster V100

     96.30 103.30 excl. BTW

  • Elster V110P

     133.00 267.50 excl. BTW

  • Elster pulsmodule Reed contact / Pulser for Elster M100 series (K=100)

     47.95 excl. BTW
